VIETNAM
1. ENERGY, ECONOMIC AND ELECTRICITY INFORMATION
1.1. General Overview
Vietnam, a nation located along the eastern coast of the mainland of Southeast Asia, is shaped like a giant letter S, extending some 1,600 km from the Chinese border to Point Ca Mau (Baibung) on the Gulf of Thailand, see Figure 1. The total area of Vietnam is 333,688 km2. At its widest it reaches a width of about 560 km. In the narrow centre it is less than 50 km wide.
FIG. 1. Map of mainland Vietnam
The altitude of the land is generally high in the north and low in the south. In the north, the coastal plain extends over a fertile delta plain called the Red River Delta, which covers an area of about 12,500 km2. Hanoi, the capital of the country, is located in the delta and the Red River pours into the Gulf of Bac Bo. In the south, the coastal plain widens into the Mekong River Delta, which has an area of about 39,600 km2.
Vietnam belongs to the Asian Monsoon Zone and gives tropical conditions in the south and sub-tropical conditions in the north. The country enjoys a variety of climatic conditions, including the cool weather in the northern mountain area, the wet tropical climate from northern to central low land, and the tropical monsoon climate in the southern low lands. The wet season lasts from May to October and the dry season from November to April.
In 2000, the population of the country was about 78 million of which about 76.5% lived in rural areas and 23.5% in urban areas (Table 1). Major urban centres are Hanoi accounting 3.5 million people, Da nang 1.8 million and Ho Chi Minh City around 5 million. The average population density is about 228 per km2. It varies from one area to another. The population density in the northern Red River Delta is approximately 900 per km2, which is twice as high as that in the southern Mekong Delta. The population density in the central high land area is only 100 per km2. The past 5 years trend of population is given in the Table 2.
TABLE 1. POPULATION INFORMATION
Growth |
||||||||
rate (%) |
||||||||
|
|
|
|
|
|
1990 |
||
1970 |
1980 |
1990 |
2000 |
2001 |
2002 |
To |
||
|
|
|
|
|
|
2002 |
||
|
|
|
|
|
|
|
|
|
Population (millions) |
|
41.7 |
53.7 |
66.0 |
77.6 |
78.7 |
79.7 |
1.61 |
Population density (inhabitants/kmē) |
124.6 |
163.0 |
200.3 |
235.5 |
238.7 |
241.9 |
|
|
|
|
|
|
|
|
|
|
|
Predicted population growth rate (%) 2002 to 2010 |
|
1.05 |
||||||
Area (1000 kmē) |
|
|
|
329.6 |
||||
Urban population in 2002 as percent of total |
|
25.11 |
Source: IAEA Energy and Economic Database.
TABLE 2. PAST 5 YEARS TREND OF POPULATION
|
1995 |
1996 |
1997 |
1998 |
1999 |
2000 |
Population, million persons |
71.99 |
73.16 |
74.31 |
75.46 |
76.60 |
77.64 |
Growth rate, % |
1.65 |
1.61 |
1.57 |
1.55 |
1.51 |
1.36 |
Source: Vietnam Statistical Yearbook, Hanoi 1996,1997,1998,1999, 2000,2001
The population growth rate was 2.3% for the period from 1980 to 1985 and 2.0% from 1985 to 1990. In the recent years, the population growth rate is about 1.55 %.
Based on the projection of the population completed on July 1999 by the General Statistical Office, the total population is expected to increase from 77.9 millions in the year 2000 to 98.4 millions in the year 2020. The projection of the population growth in the period form the year 2000 to the year 2020 is given in the Table 3.
TABLE 3. TOTAL PROJECTED POPULATION FOR THE PERIOD 2000-2020
Year |
2000 |
2005 |
2010 |
2015 |
2020 |
Population, million persons |
77.68 |
82.559 |
87.612 |
92.899 |
98.211 |
Growth rate,
% |
1.36 |
1.19 |
1.18 |
1.14 |
1.0 |
In 1995, 80% of the population was distributed in rural areas. However, the urban population is expected to increase from 20% in 1995 to 46% in the year 2020. This is illustrated in Table 4.
TABLE 4. THE DISTRUBUTION OF THE POPULATION
Year |
1995 |
2000 |
2005 |
2010 |
2015 |
2020 |
Urban, % |
20 |
25.11 |
30 |
35 |
40 |
46 |
Rural, % |
80 |
74.89 |
70 |
65 |
60 |
54 |
1.1.1 Economic Indicators
Since 1986, Vietnam has initiated a reform from a centrally planned economy to a market economy. As a result, Vietnam's economy began to develop steadily in the recent years and most likely it will have high growth rates in the near future. The economic development alone will force an increase in energy development in general and electricity in particular. In the period 1991-1995, the Gross Domestic Production (GDP) has grown at an average rate of 8.2% per year and the growth rate of the electricity consumption was 12.5%. From 1995 to 1997, Vietnam's economy developed stable, but in the years 1998 and 1999, it went down due the financial crisis. From 2000, as in most Asian countries, the Vietnam economy began to pick up again. The trend of the economic development over the past 5 years is given in the Table 5 and that of the export and import of goods is given in the Table 6. Exports include crude oil, rice, marine products, coal, coffee and rubber and imports petroleum products, steel products, tractors, cotton and textiles.
Currently, the Vietnamese Government has reviewed and adjusted
targets for the economic development for the period 2000-2020. The concrete
targets for 2010 are:
§ A
doubling of GDP by 2010 to be attained through an economic growth of over
7% per annum;
§
Investment to be increased
to 30% of GDP;
§
Export to grow more than twice the rate of GDP;
§
The share of agriculture
in GDP to decline from 25% to 16-17%; industry to increase from 35% to 40-41%;
and services to increase from 40% to 42-43%;
§ The
share of rural employment to decline from about two-thirds to half; and
§ The
share of urban population to increase from
a quarter to a third.
TABLE 5. ECONOMIC DEVELOPMENT AND STRUCTURE
Parameters |
1995 |
1996 |
1997 |
1998 |
1999 |
2000 |
2001 |
2002 |
GDP growth rate, % |
9.54 |
9.34 |
8.15 |
5.76 |
4.77 |
6.79 |
6.89 |
7.04 |
GDP1 Billion VND Million USD GDP per Sector: |
228,892 20,808 |
272,036 24,552 |
313,623 26,794 |
361,016 26,989 |
399,942 29,538 |
441,646 31,546 |
481,295 33,193 |
536,098 35,739 |
Agriculture, Forestry & Fishing, % |
27.18 |
27.76 |
25.77 |
25.78 |
25.43 |
24.53 |
23.24 |
22.99 |
Industry & Construction, % |
28.76 |
29.73 |
32.08 |
32.49 |
34.49 |
36.73 |
38.13 |
38.55 |
Service, % |
44.06 |
42.51 |
42.15 |
41.73 |
40.08 |
388.74 |
38.63 |
38.46 |
1 at current prices
Source: Vietnam Statistical Yearbook, Hanoi 1996,1997,1998,1999, 2000,2001,2002
TABLE 6. THE EXPORT AND IMPORT OF GOODS
Parameters |
1995 |
1996 |
1997 |
1998 |
1999 |
2000 |
2001 |
2002 |
Export, million USD |
5,448.9 |
7,255.9 |
9,185.0 |
9,360.3 |
11,541.4 |
14.483.0 |
15,029 |
16,760 |
Import, million USD |
8,155.4 |
11,143.6 |
11,592.3 |
11,499.6 |
11,742.1 |
15,636.5 |
16,218.0 |
19,733.0 |
Balance |
-2,706.5 |
-3,887.7 |
-2,047.3 |
-2,138.6 |
-200.7 |
-1,153.5 |
-1,189 |
-3,027 |
Source: Vietnam Statistical Yearbook, Hanoi 1996,1997,1998,1999, 2000,2001,2002
1.1.2. Energy Situation
The overall Vietnamese energy reserves are given in Table 7.
TABLE 7. ESTIMATED ENERGY RESERVES
Estimated energy
reserves in |
||||||
(Exajoule) |
||||||
|
|
|
|
|
|
|
Solid |
Liquid |
Gas |
Uranium |
Hydro |
Total |
|
|
|
|
(1) |
(2) |
|
|
|
|
|
|
|
|
|
Total amount in place |
89.89 |
0.022 |
0.027 |
18 |
0.288 |
108.23 |
|
|
|
|
|
|
|
(1) This total represents essentially
recoverable reserves. |
||||||
(2) For comparison purposes a rough
attempt is made to convert hydro capacity to energy by multiplying |
||||||
the gross theoretical annual capability (World Energy Council
- 2002) by a factor of 10. |
|
Source: IAEA Energy and Economic Database.
1.1.2.1. Coal
Coal reserves in Vietnam are concentrated in the northern part, especially in the Quang Ninh province. Total reserves of anthracite and semi-anthracite to a depth of 1,000 meters are said to be 6.6 billion tons, in which the total of surveyed reserves to a depth of 300 meters are 3.1 billion tons. There are other coal reserves besides anthracite: 11.8 million tons of bituminous and 244.1 million tons of lignite and semi-bituminous are surveyed reserves. The production comes from 3 coal companies: Uong Bi Coal Company (Vang Danh, Mao Khe, Trang Bach), Hon Gai Coal Company and Cam Pha Coal Company (Khe Tam, Dong Bac). Data of the past 5 years of coal production and coal use is given in Table 8 and the projected coal- production in Table9.
TABLE 8. COAL PRODUCTION AND COAL USE
Parameters |
1995 |
1996 |
1997 |
1998 |
1999 |
2000 |
2001 |
2002 |
Coal prod., million tons |
8.35 |
9.80 |
11.40 |
11.67 |
9.63 |
11.61 |
13.40 |
15.9 |
Coal Export., million tons |
2.80 |
3.6 |
3.45 |
3.16 |
3.26 |
3.25 |
4.29 |
6.05 |
Domestic use, million tons |
4.84 |
6.2 |
7.95 |
8.51 |
6.37 |
8.36 |
9.11 |
9.85 |
TABLE 9. PROJECTED COAL PRODUCTION AND CONSUMPTION
Parameters
|
2000 |
2010 |
2020 |
Projected-coal production, million
tons |
11.6 |
28.77 |
35.61 |
Demand for elect. prod., million
tons |
3 |
8-10 |
15-17 |
Demand for Exp. & other, million
tons |
7 |
5-6 |
11-12 |
1.1.2.2. Oil, Gas & Petroleum products
Exploration of oil and gas in Vietnam has been carried out since 1959. The potential reserves of oil & gas are estimated to be 4.8 billion m3 oil equivalent, which are mainly offshore located. By the end of 1999, the discovered reserves of oil & gas were 1.1 billion m3 oil equivalent, of which oil was 430 million tons and gas 620 billion m3. In the past period, the crude oil production has increased remarkably. Up to now, the total amount of crude oil production is more than 100 million tons. At the present time, almost all crude oil is exported, while the domestic demand in petroleum products is met by import. A refinery with a capacity of 6.5 million tons/year is now under construction and will be put into operation in 2004. Currently, the off shore associated gas pipeline supplied 1.5 billions m3 for electricity generation. The past 5 years of oil & gas production is given in Table 10. The projected oil & gas production is given in Table 11.
TABLE 10. OIL & GAS PRODUCTION
Parameters |
1995 |
1996 |
1997 |
1998 |
1999 |
2000 |
2001 |
2002 |
Crude oil, million tons |
7.62 |
8.8 |
10.1 |
12.5 |
15.12 |
16.29 |
16.83 |
17.09 |
Natural gas, billion m3 |
0.21 |
0.31 |
0.56 |
1.04 |
1.44 |
1.721 |
1.724 |
2.25 |
Imported petr. products, million
tons |
5.0 |
5.90 |
5.96 |
6.85 |
7.43 |
8.75 |
9.08 |
9.97 |
Source: Vietnam Statistical Yearbook, Hanoi 1996,1997,1998,1999, 2000,2001,2002
TABLE 11. PROJECTED OIL & GAS PRODUCTION
Parameters |
2000 |
2010 |
2020 |
Projected-oil production, million
tons |
16.50 |
20.6 - 21.6 |
10.7 - 18 |
Projected-gas production, billion
m3 |
1.6 |
6 - 14 |
14 - 18 |
Import petroleum products, million
tons |
8.20 |
3.86 |
9.70 |
1.1.2.3. Hydro power potential
The total technical reserves for hydroelectric power on the ten principle
rivers of Vietnam are estimated at 17-18,000 MW with an annual electricity
output of 72 TW·h. The total technical potential is based on a study
made some ten years ago and currently it is unlikely to be achievable due
to environmental problems. More recent estimations suggest that the total
exploitable electricity from hydropower will not exceed 50-55 TW·h
with a total capacity of around 12,000 MW. 'Usually, the hydropower electricity
fraction is in the summer rather high (about 55%), however, during the summer
of 1998 there was an insufficient electricity supply caused by lack of water
in the hydropower reservoirs. Based on this experience, the Government of
Vietnam has implemented several measurements. The share of electricity from
hydro power plants will decrease in the future. The projected electricity
production for 2010 is about 25-30 TW·h and for 2020 about 50 -55
TW·h.
1.1.2.4. Uranium
Currently, there is no nuclear power in Vietnam. Uranium ore has been found in the northern and central regions of Vietnam. These uranium deposits have been estimated to hold about 210 thousand tons of U3O8, with a low average uranium oxide content of 0.06%.
1.1.2.5. New and Renewable Energy
Geothermal Energy
There is a potential for geothermal energy in Vietnam since it has more
than 300 hot-water areas, with a surface water temperatures ranging from
30oC to 105oC. Recently, an American company, ORMAT, carried out a study
at 60 hot-water areas and has chosen 6 sites, mostly in the central and
south regions of Vietnam, for installations of geothermal plants with a
total capacity of about 200 MW.
Solar Energy
Vietnam is a tropical country with an average sunlight of 2000 to 2500 hours
per year and a total average solar radiation of 100 to 175 kcal/cm2 per
year. Currently, some solar cells have been used to provide power for light
residential uses, in isolated rural areas which are not yet connected to
the electrical grid. The cost of importing solar cells is high, thus prevents
any further plan to expand the programme.
Wind Energy
Vietnam has small scale experiments to explore the option of wind energy.
Recently, the government of Vietnam has approved a BOT project for wind
energy in the province of Khanh Hoa. The approved capacity is 10 MW, with
a plan to increase it to 20 MW.
Biomass
Biomass resources in Vietnam include wood and agriculture wastes and are
estimated to be about 43 to 46 million tons of oil equivalent energy. The
respective shares for wood and agriculture wastes are about 60% and 40%,
respectively. The potential biomass energy is estimated to be about 0.4
million tons of oil equivalent energy. Although the resources are significant,
there are environmental concerns with using wood products for electricity
generating. At this point, there is not a great potential to explore biomass
energy.
1.1.2.6. Energy
The Vietnamese basic energy situation is given in Table 12.
TABLE 12. ENERGY STATISTICS(*)
Average annual |
||||||||
growth rate
(%) |
||||||||
|
|
|
|
|
|
1970 |
1990 |
|
1970 |
1980 |
1990 |
2000 |
2001 |
2002 |
To |
To |
|
|
|
|
|
|
|
1990 |
2002 |
|
|
|
|
|
|
|
|
|
|
Energy consumption |
|
|
|
|
|
|
|
|
- Total (1) |
0.53 |
0.40 |
0.57 |
1.13 |
1.19 |
1.21 |
0.42 |
6.48 |
- Solids (2) |
0.23 |
0.33 |
0.39 |
0.55 |
0.57 |
0.57 |
2.61 |
3.18 |
- Liquids |
0.29 |
0.05 |
0.13 |
0.38 |
0.39 |
0.40 |
-3.89 |
9.88 |
- Gases |
|
|
|
0.05 |
0.09 |
0.10 |
|
76.27 |
- Primary electricity (3) |
0.01 |
0.01 |
0.05 |
0.15 |
0.15 |
0.15 |
11.44 |
9.07 |
Energy production |
|
|
|
|
|
|
|
|
- Total |
0.25 |
0.36 |
0.57 |
1.54 |
1.70 |
1.86 |
4.28 |
10.39 |
- Solids |
0.24 |
0.35 |
0.40 |
0.66 |
0.68 |
0.69 |
2.63 |
4.57 |
- Liquids |
|
|
0.11 |
0.68 |
0.80 |
0.92 |
|
19.11 |
- Gases |
|
|
|
0.05 |
0.08 |
0.10 |
|
77.00 |
- Primary electricity (3) |
0.01 |
0.01 |
0.05 |
0.15 |
0.15 |
0.15 |
11.44 |
9.07 |
Net import (Import - Export) |
|
|
|
|
|
|
|
|
- Total |
0.28 |
0.04 |
0.00 |
-0.36 |
-0.42 |
-0.46 |
18.63 |
47.04 |
- Solids |
-0.01 |
-0.01 |
-0.02 |
-0.10 |
-0.09 |
-0.09 |
5.97 |
12.23 |
- Liquids |
0.29 |
0.05 |
0.02 |
-0.27 |
-0.33 |
-0.37 |
-12.88 |
-28.59 |
- Gases |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(1) Energy consumption = Primary energy
consumption + Net import (Import - Export) of secondary energy. |
||||||||
(2) Solid fuels include coal, lignite
and commercial wood. |
||||||||
(3) Primary electricity = Hydro + Geothermal
+ Nuclear + Wind. |
||||||||
(*) Energy values are in Exajoule except
where indicated. |
Source: IAEA Energy and Economic Database
1.2. Energy Policy
The point of view of Vietnam is to consider a macro economic and long-term energy programme. The energy sector has great inertia (slow evolution in conception, long time of construction) and exerts a great influence on several other sectors (science, technology, economics, society, etc.), so the energy planning must be a long-term programme and based on macro economics (with account of external costs).
Vietnam possesses reserves of oil and gas, but oil is not considered for electricity production. Gas can supply approximately 40 billion kW·h and it is important to notice that once thermal plants are operating, gas must be supplied for about 30 to 35 years (life-time of thermal plants). Gas and oil will be exhausted, besides these natural resources are precious and worth to be conserved for industry and chemistry. The discovery of new oil and gas reserves can delay slightly the introduction of nuclear power but doesn't change the picture.
1.3 The Electricity System
1.3.1 Structure of the Electricity Sector
Electricity of Vietnam (EVN) is the unique state-owned electricity utility in Vietnam operating under management of the government. Electricity supply regime is divided according to the regions: northern, central, and southern. Supply system operation and management responsibilities in each region are Northern Elect. Co., Central Elect. Co., Southern Elect. Co., Hanoi Elect. Co., and Ho Chi Minh Elect. Co. The electric demand/supply conditions differ substantially between them. In Vietnam, there are substantial regional differences in energy endowments and in the patterns of energy consumption. The North has an excess of hydro and coal-fired power resources, and power surplus is now being transported to the Centre and the South over a high-voltage transmission line at 500 kV with a length of about 1,500 km. This transmission line effectively interconnects the electric systems of the three regions of the country
In short, during the last decade (1986-1995), in comparison with other economic sectors, the power sector was given higher priority and it had achieved profound progresses. The power system was nationally integrated with the presence in production of relatively big thermal and hydroelectric power plants. The level of electrification has been step by step expanded not only in urban but also in rural and to some extent in mountainous and highland areas.
1.3.2 Decision Making Process
Recognizing the extremely important role of energy, particularly electric power in national economic development, to meet the fast growing energy demand of the country, and in order to successfully perform industrialization and modernization policy, the Government of Vietnam has paid special attention to developing the national energy supply system. Every 5 year, VN Government establishes different projects and R&D programme on energy and electricity planning. There are different energy planning organizations take part in these projects and R&D programme. In general, the Ministry of Industry (MOI) is responsible for performing different projects, such as Master plans for developing of Electricity, Coal, Oil & Gas. The Ministry of Science, Technology and Environment (MOST) is responsible for performing National R&D programme on energy and electricity planning.
At the present time, the Vietnam Government has launched at MOST the National R&D programme on energy and electricity planning KHCN-09: "Strategy and Policy for Energy Sustainable Development", 1996-2000. There are different energy planning organizations take part on this programme, among them:
1. Nuclear Power Centre (NPC),Vietnam Atomic Energy Commission
(VAEC) - MOST
2. Institute of Energy (IE), Electricity of Vietnam (EVN) - MOI.
3. Hanoi Technical University (HTU), Ministry of Education & Training
(MET).
4. Institute of Coal (IC) Vietnam Coal Corporation (VNCOAL) - MOI.
5. Institute of Oil & Gas (I of O&G), Vietnam Petrol & Gas Corporation
(PETROVN).
6. Energy Department (ED), National Centre of Natural Science &Technology
(NCNST).
7. Development Strategy Institute (DSI), Ministry of Planning & Investment
(MPI).
In order to successfully perform energy planning studies, the energy planning organizations have used different energy planning tools, such as ENPEP (mainly MAED, WASP & IMPACTS), MEDEES, EFOM, ETB etc.
1.3.3. Main Indicators
Presently, the hydro power plants are still predominant in the electricity
system of Vietnam, not only in installed capacity, but also in the generation
terms. By the end of 2002, the total installed capacity of the electricity
generating system was 8,750 MW, of which 48.8% was hydropower, and the total
electric generation was 18,186 GW·h, of which 50.8% was hydropower.
The structure of the generating mix is given in Table 13 and Figure 2.
TABLE 13. THE STRUCTURE OF THE GENERATING MIX (year 2002)
|
Capacity, MW |
Share, % |
Electricity, GW·h |
Share, % |
1. Hydro |
4,270 |
48.8 |
18,186 |
50.8 |
2. Thermal |
1,785 |
20.4 |
8,019 |
22.4 |
3. Gas Turbine |
2,375.5 |
26.6 |
8,592 |
24.0 |
4. Diesel |
367.5 |
4.2 |
1,002 |
2.8 |
Total |
8,750 |
100 % |
35,800 |
100% |
Source: Vietnam Energy Database, Final Report of KHCN-09, Hanoi, May 2002, (in Vietnamese).

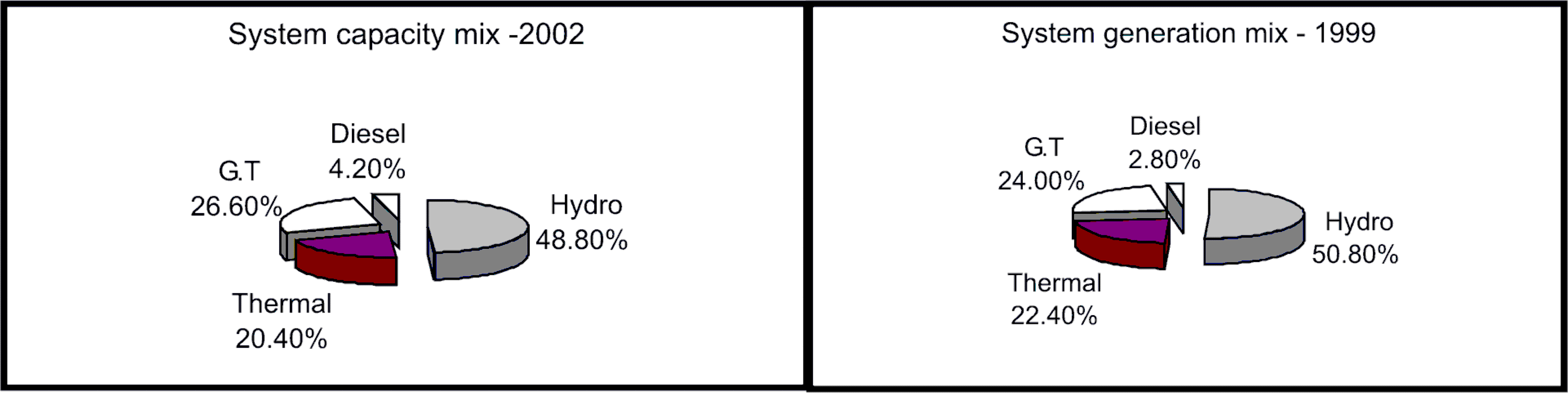

FIG. 2. The structure of the generating mix
The structure of the electricity generation and consumption over the past 5 years is given in Tables 14 and 15 and the EEDB statistics and energy related ratios in Tables 16 and 17.
TABLE 14. THE STRUCTURE OF ELECTRICITY GENERATION
Structure |
1995 |
1996 |
1997 |
1998 |
1999 |
2000 |
2001 |
Total production,
GW·h |
14636 |
16960 |
19151 |
21654 |
23739 |
26,594 |
30,603 |
Hydro,% |
72.3 |
70.5 |
61.0 |
51.0 |
58.7 |
54.7 |
59.5 |
Thermal,% |
20.0 |
19.4 |
22.6 |
22.0 |
22.7 |
22.3 |
21.1 |
GT & Diesel,% |
7.7 |
10.1 |
16.4 |
27.0 |
18.6 |
23.0 |
19.4 |
Total system
loss, % |
21.7 |
19.3 |
18.2 |
16.1 |
15.8 |
15 |
14.6 |
Source: Vietnam Energy Database, Final Report of KHCN-09, Hanoi, May 2000, (in Vietnamese). Institue of Energy Report - 2001
TABLE 15. THE STRUCTURE OF ELECTRICITY CONSUMPTION
Structure
|
1995 |
1996 |
1997 |
1998 |
1999 |
2000 |
2001 |
Industry,% |
41.2 |
40.3 |
39.2 |
38.5 |
38.7 |
40.6 |
40.4 |
Agriculture,% |
5.6 |
4.8 |
4.5 |
4.0 |
3.0 |
1.9 |
1.9 |
Household, service,% |
44.1 |
45.4 |
47.2 |
49.9 |
51.1 |
49.0 |
49.1 |
Other,% |
9.1 |
8.2 |
7.9 |
7.8 |
7.2 |
8.5 |
8.6 |
Source: Vietnam Energy Database, Final Report of KHCN-09, Hanoi, May 200, (in Vietnamese). Institue of Energy Report - 2001
TABLE 16. ELECTRICITY PRODUCTION AND INSTALLED CAPACITY
Average annual |
||||||||
growth rate
(%) |
||||||||
|
|
|
|
|
|
1970 |
1990 |
|
1970 |
1980 |
1990 |
2000 |
2001 |
2002 |
To |
To |
|
|
|
|
|
|
|
1990 |
2002 |
|
|
|
|
|
|
|
|
|
|
Electricity production (TW.h) |
|
|
|
|
|
|
|
|
- Total (1) |
2.12 |
4.21 |
8.72 |
26.59 |
30.60 |
35.80 |
7.33 |
12.49 |
- Thermal |
1.51 |
2.90 |
3.35 |
11.38 |
11.72 |
16.93 |
4.08 |
14.45 |
- Hydro |
0.62 |
1.20 |
5.37 |
14.55 |
18.22 |
18.20 |
11.44 |
10.71 |
- Nuclear |
|
|
|
|
|
|
|
|
- Geothermal |
|
0.11 |
|
0.67 |
0.67 |
0.67 |
|
|
Capacity of electrical plants (GWe) |
|
|
|
|
|
|
|
|
- Total |
0.56 |
1.19 |
2.13 |
5.90 |
7.61 |
8.75 |
6.90 |
12.49 |
- Thermal |
0.40 |
0.89 |
1.40 |
2.36 |
3.55 |
4.55 |
6.52 |
10.33 |
- Hydro |
0.16 |
0.25 |
0.68 |
3.46 |
3.98 |
4.12 |
7.33 |
16.19 |
- Nuclear |
|
|
|
|
|
|
|
|
- Geothermal |
|
0.05 |
0.05 |
0.08 |
0.08 |
0.08 |
|
3.64 |
- Wind |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(1) Electricity losses are not deducted. |
||||||||
(*) Energy values are in Exajoule except
where indicated. |
Source: IAEA Energy and Economic Database.
TABLE 17. ENERGY RELATED RATIOS
1970 |
1980 |
1990 |
2000 |
2001 |
2002 |
|||
|
|
|
|
|
|
|
|
|
Energy consumption per capita (GJ/capita) |
12 |
7 |
9 |
14 |
15 |
15 |
||
Electricity per capita (kW.h/capita) |
|
50 |
73 |
131 |
341 |
390 |
449 |
|
Electricity production/Energy production (%) |
8 |
11 |
15 |
17 |
16 |
15 |
||
Nuclear/Total electricity (%) |
|
|
|
|
|
|
|
|
Ratio of external dependency (%) (1) |
53 |
10 |
-1 |
-32 |
-35 |
-38 |
||
Load factor of electricity plants |
|
|
|
|
|
|
||
- Total (%) |
43 |
41 |
47 |
60 |
62 |
60 |
||
- Thermal |
43 |
37 |
27 |
64 |
66 |
61 |
||
- Hydro |
43 |
55 |
91 |
57 |
57 |
57 |
||
- Nuclear |
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
(1) Net import / Total energy consumption. |
Source: IAEA Energy and Economic Database
2. NUCLEAR POWER SITUATION 1
2.1. Historical Development and current nuclear power organizational structure1
2.1.1 Overview
The introduction of nuclear power in the country needs preliminary studies.
The following institutions are responsible for these preliminary studies:
§
Institute of Energy
(IE), Electricity of Vietnam (EVN), Ministry of Industry (MOI).
§
Nuclear Power Centre
(NPC), Institute of Nuclear Science & Technology (INST), Vietnam Atomic
Energy Commission (VAEC).
The past activities in Nuclear Power Planning Study of these Institutions are as follow:
1. In the years 1980-1985, Institute of Energy (IE) elaborated a preliminary nuclear power planning study in the spirit of command economy and centralized management. The results so obtained by the IE are now out of date and could not serve for an Energy and Nuclear Power Planning.
2. The TC Project VIE/0/004 "Preparatory studies for a nuclear power project" (1/1987-7/1989) was implemented by VAEC in unfavourable situation (i.e. after the Chernobyl accident which aggravated the economic conditions in Vietnam). Although completed, this project has not yet given definitive results.
3. In the years 1992-1995, the preliminary study was carried out in the frame of the National Project KC-09-17: "Study on the viability of the introduction of the Nuclear Power in Vietnam". The main responsible for this project was NPC, INST, VAEC. The major conclusion of this study is as follow: "Around the year 2015, when electricity demand more than 100 billion kW·h, the nuclear power should be introduced for satisfying the continuously growth in the country's electricity demand in that time and beyond". This preliminary study result should be confirmed by energy-planners & decision-makers of all energy-responsible organizations in VN and by an IAEA experts team.
2.1.2 Current Organizational Chart(s)
Many ministries are involved in nuclear safety related matters, emergency planning, development of programmes and their financing, control of export/import, transportation, etc. mainly from a radiation safety point of view. Most of the tasks have to be performed in co-operation with the MOST (Minister of Science, Technology and Environment). The Ministry of Industry, which will in future play a crucial role in establishing nuclear power plants is not covered yet by the existing legislation. At present, MOST is the senior governmental body in regulating nuclear safety matters. In accordance with the Law on Environmental Protection and the Decree No.175, the Minister of MOST is the country's chief regulator. Under MOST, there are several agencies performing mainly advisory function for the Minister. A simplified organizational chart of MOST is shown in Figure 3

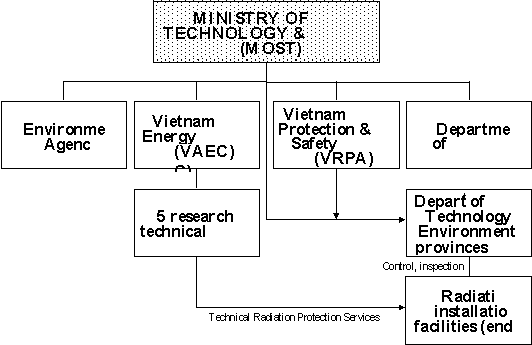

FIG. 3. Simplified Organizational Chart of MOST
2.2. Nuclear Power Plants: Status and Operations 1
At the present time, the Vietnam Government has created different projects
aimed to broader and more basically consideration of nuclear power option.
These projects are as follows:
1. The
National Industrial Project: "General survey studies for the introduction
of Nuclear power into Vietnam", sponsored by Ministry of Industry. The
Institute of Energy, the Electricity of Vietnam and the Vietnam Atomic Energy
Commission are the main responsible for this project. This project is being
carried out in three years: 1996-1999. The scope of this project includes
two main tasks:
· The
non-site studies, covering electricity expansion long-term planning, economics
of nuclear power and financing, technical and safety aspects, the fuel cycle
and waste management;
· Site
and environmental studies, covering preliminary site selection and environmental
impacts.
2. In the framework
of National R&D programme on "Strategy and Policy for Energy sustainable
development", 1996-1999. There are different energy planning organizations
take part on this programme, among them, the VAEC is responsible for R&D
Project KHCN-09-04: "Establishment the fundamental basis for the introduction
of nuclear power into Vietnam",
with following objectives:
·
To analysis of nuclear
power role in long-term energy supply system; and
·
To promote the national
R&D infrastructure for future nuclear power programme.
3.
To assist Vietnamese
experts in performing energy and nuclear power planning activities, under
the framework of IAEA Technical Cooperation programmes, the TC Project: VIE/0/009
"Pre-feasibility study for the introduction of Nuclear Power Plant into
Vietnam" is ongoing. This TC project begins in March 1997 and is planned
to finish in the end of 1999. It concentrates on following two aspects:
· Energy and Nuclear
Power Planning, using IAEA planning tool, such as ENPEP, MAED, WASP, IMPACTS;
· Technology, safety
of Nuclear Power plants and infrastructure requirements for Nuclear Power
implementation.
In the framework of Bilateral Cooperation, in recent years, Vietnam has
received the very useful assistance from different rich-experienced countries,
such as Japan, Canada, Korea, India, France and others.
2.3 Supply of NPPs 1
Not applicable.
2.4 Operation of NPPs 1
Not applicable.
2.5 Fuel Cycle and Waste Management 1
Not applicable.
2.6 Research and Development 1

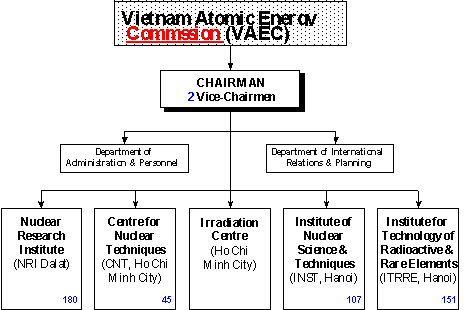

One of the agencies under MOST is the Vietnam Atomic Energy Commission (VAEC). The VAEC was established in April 1976 and up to April 1994 it was controlled under the Prime Minister's office. In April 1994, VAEC was reorganized and put under MOST. As shown in Figure 4, the VAEC comprises five main institutions. These are:
1. Nuclear Research Institute in the Dalat City (NRI, Dalat);
2. Centre for Nuclear Techniques in the Ho Chi Minh City (CNT, HCM);
3. Irradiation Centre in the Ho Chi Minh City;
4. Institute of Nuclear Science and Techniques in Hanoi (INST, Hanoi);
5. Institute for Technology of Radioactive and Rare Elements in Hanoi (ITRE,
Hanoi).
VAEC represents manpower of nearly 600 people; two thirds of them are scientists.
At present, VAEC:
1. serves as an advisory body to the government in developing strategy of
the nuclear programme;
2. performs research, development and transfer of nuclear techniques to end
users;
3. carries out technical services in radiation protection for research and
application of nuclear techniques in VAEC and outside;
4. co-operates with VRPA in preparation of regulations for the nuclear field;
5. develops human resources for the Vietnam nuclear programme;
performs implementation of the international co-operation in the nuclear field.
2.7 International Co-operation and Initiatives 1
Brief description of research and development activities carried out jointly with other countries and/or within the framework of international projects, technical and industrial co-operation, transfer of know-how and technology.
3. NATIONAL LAWS AND REGULATIONS 1
3.1. Safety Authority and the Licensing Process
The Vietnam Radiation Protection and Nuclear Safety Authority (VRPA) was established in 1994 by a Decision of the Prime Minister to assist the MOST in the state management of radiation protection and nuclear safety.
The authority of the regulatory body is described in the "Ordinance on Radiation Safety and Control" and includes the normal functions expected of a Regulatory Body but is heavily biased towards the regulation of radiation protection. Although not explicitly stated in the law VRPA must give prior authorization for any activities involving the use of radioactive material or source.
The primary function of VRPA (Decision No. 159/QD-TCCB of March 4, 1995 of
the Minister of MOST) is to assist the Minister responsible for MOST in exercising
the state management of radiation protection and nuclear safety. Its responsibilities
include the following:
1. establish a National Plan of radiation protection and nuclear safety;
2. draft and submit legal documents, regulations, standards relating to radiation
protection and nuclear safety;
3. to organize the system of notification, registration and licensing for
radiation sources, practices, installations and workers;
4. to organize the review and approval of the radiation protection and nuclear
safety aspects of sites, design and technical justification of radiation installations
and works;
5. to organize the control, inspection of radiation protection and nuclear
safety for radiation installations;
6. to deal with violations of radiation protection and nuclear safety provisions
according to the law;
7. to organize the training and provision of information to the public, concerning
radiation protection and nuclear safety;
8. to organize the development of human resources, technical equipment and
facilities for ensuring the control of radiation protection and nuclear safety;
9. to organize the implementation of international treaties and conventions
which Vietnam signs up to; also to organize other aspects of international
co-operation.
3.2. Main National Laws and Regulations in Nuclear Power
Not applicable.
4. CURRENT ISSUES AND DEVELOPMENTS ON NUCLEAR POWER
After the completion of the above-mentioned Projects, the Vietnam Government will have overall arguments related to the possibility of the introduction of Nuclear Power. There are some major arguments for nuclear power consideration:
· The country's balance of energy demand and supply resources;
· The security of energy supply and diversity of energy sources;
· The economical availability;
· The nuclear safety and radioactive wastes management;
· The environmental impacts - sustainable development.
The studies project demand for electric power up to 2020 based on three assumed
growth rates of GDP. Based on medium (base) growth rate, the present installed
capacity of about 6200 MW (Hydro 53%, Coal 20% and Gas/Oil 27%) is required
to reach 33000 MW by the year 2020. On the other hand for high growth rate
the requirement in 2020 will be 38000 MW. The study concludes that to meet
these requirements, the first Nuclear power plant will have to be introduced
between 2017 to 2019 depending on the growth rate achieved. This will call
for a nuclear installed capacity of 1200 to 4000 MW in 2020.
Projects on Pre-feasibility studies: 2002-2004
· May 2001, Prime Minister assigned MOI in collaboration with MOST
to carry out a Pre-feasibility study for the first NPP construction in VN;
· June 2001, Master Plan on Electric Power Expansion (2000-2010) with
vision to 2020 including consideration of NPP's construction around 2020 was
approved by Prime Minister;
· March 2002, The Steering Committee for Nuclear Power was established
by Prime Minister. The Committee is compose of two main ministries MOI and
MOST and some other members from various ministries. Main responsibilities
of Committee are:
- Establish National strategy and long term programme for nuclear development
, in charge by MOST, VAEC
- Study on Pre-feasibility for first NPP, in charge by MOI
The Committee have to submit his result by the end of 2003 to the Prime Minister
then NA for consideration.
Based on national energy resources and energy demand/supply balance, the priority in electricity expansion development plan in the future is as follows:
· Hydro power plants;
· Gas-fired power plants in the South;
· Coal-fired plants in the North;
· Import electricity from neighbouring countries;
· Import ed- coal -fired plants in the North;
· Active preparation for the introduction of Nuclear power plants after
2015.
REFERENCES
[1] Vietnam Statistical Yearbook, Hanoi 1996, 1997, 1998, 1999, 2000,2001.
[2] Institute of Energy, EVN, internal reports, Hanoi 1999,2000, 2001(in Vietnamese).
[3] Nuclear Power Centre, INST, VAEC, internal reports of KHCN-09-4 and VIE/0/009,
Hanoi 1998,1999.
[4] N.T. Nguyen, L.V. Hong, N.M. Hien, Electricity and Nuclear Power Planning
Study in Vietnam. INST-VAEC report, 2001.
[5] Framework of "Strategy and Policy for Energy sustainable development",
Final Report of KHCN-09, Hanoi, April 2001, (in Vietnamese).
[6] Vietnam Energy Database, Final Report of KHCN-09, Hanoi, April 2001, (in
Vietnamese).
[7] IAEA Energy and Economic Data Base.
[8] Data & Statistics, the World Bank, www.worldbank.org/data.
Appendix 1.
International, Multilateral and Bilateral Agreements
INTERNATIONAL AGREEMENTS |
||
|
Entry into force: |
23
February 1990 |
|
Prefers to apply the present system |
19
June 1990 |
|
Entry into force: |
01
May 1983 |
|
Entry into force: |
28
August 1997 |
|
Entry into force: |
31
July 1969 |
|
Entry into force: |
14 June 1982 |
|
|
Non-Party |
|
||
|
Entry into force: |
30 October 1987 |
|
||
|
Entry into force: |
30 October 1987 |
|
Non-Party |
|
|
Non-Party |
|
|
Not signed |
|
|
Not signed |
|
|
Non-Party |
|
|
Not signed |
|
|
Non-Member |
|
|
Not adopted |
|
|
Non-Member |
|
|
·
Agreement between the government of the Socialist Republic
of Vietnam and the government of the Republic of India for the co-operation for utilization of atomic energy
for peaceful purposes. |
signed in 1986 |
·
Agreement between the government of the Republic of Korea
and the government of the Socialist Republic of Vietnam for the co-operation
in the peaceful uses of nuclear energy. |
signed in 1996 |
·
Agreement for co-operation between Vietnam Atomic Energy
Commission (VAEC) and Korea Electric Power Corporation. |
signed in 1995 |
·
Co-operation agreement on peaceful uses of advanced nuclear
technology between Vietnam Atomic Energy Commission (VAEC) and the French Atomic Energy Commission
(CEA). |
signed in 1996 |
·
Co-operation agreement between Vietnam Atomic EnergyCommission
(VAEC) and Atomic Energy of Canada Limited (AECL). |
signed in 1997 |
Appendix 2.
DIRECTORY OF THE MAIN ORGANIZATIONS, INSTITUTIONS AND COMPANIES
INVOLVED IN NUCLEAR POWER RELATED ACTIVITIES
NUCLEAR ENERGY AUTHORITY |
|
|
|
Vietnam
Atomic Energy Commission |
Tel:
844 9423479 |
59 Ly Thuong Kiet |
Fax: 844 9424133 |
Hanoi, Vietnam |
|
|
|
Ministry of Science, Technology |
|
and Environment |
|
39, Tran Hung Dao Street |
|
Hanoi |
|
|
|
OTHER ORGANIZATIONS |
|
|
|
Institute for Nuclear Science |
|
and Technique (INST) |
Tel: (844)8361432 |
No 5T-160, Hoang Quoc Viet |
Fax: (844)8363295 |
Ha Noi, Viet Nam |
|
|
|
Nuclear Research Institute (NRI) |
Tel: (8463)822191 |
No.1, Nguyen Tu Luc |
Fax: (8463)821107 |
Dalati, Viet Nam |
|
|
|
Centre for Nuclear Techniques (CNT) |
|
Ho Chi Minh City |
|
No.217, Nguyen Trai |
Tel: (848)8356568 |
Tp. Ho Chi Minh, Viet Nam |
Fax: (848)8367381 |
|
|
Institute for Technology of Radioactive |
|
and Rare Elements (ITRE) |
|
No.48, Lang Ha |
Tel: (844)7760340 |
|
|
Vietnam Information for Science |
|
and Technology Advance |
|
|
|
RCA (Regional Co-operative Agreement) Vietnam |
|
|
